B7RMPS-3x1.5-316L-SF1

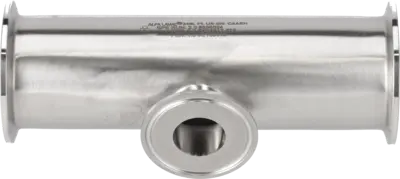

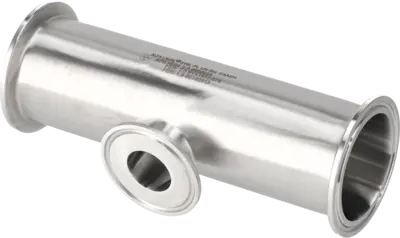

B7RMPS-3x1.5-316L-SF1 - ASME BPE TEE REDUCING TCxTCxSRTC PL DT-4.1.2-9
Manufacturer:Alfa Laval
Product code: 5037
Item number: 9634003961
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code: 7307290090
Delivery time:On request
  • Range: Tees
  • Product Model: Tri-Clover BPE Reducing Tees Short
  • Size: 3"
  • Second Size: 1.5"
  • Material: 316L
  • Finish: SF1(PL) (ID=20/OD=32µin)
  • Connection Type: Clamp ends
  • Standard: ASME BPE
  • Design: B7RMPS
  • Item Weight: 1.75
Price:
Login to view price

Shipping calculated at checkout

A: 98.40
B: 54.00
OD/ID x t: 76.20/72.90 x 1.65
OD1/ID1 x t1: 76.20/72.90 x 1.65
OD2/ID2 x t2: 38.10/34.80 x 1.65
