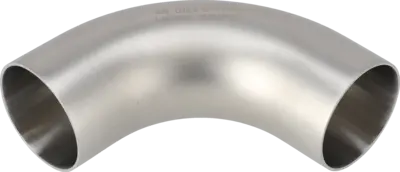

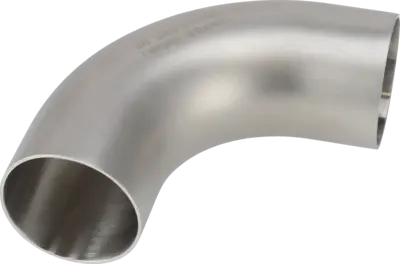

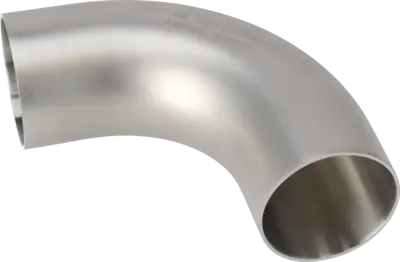

Bøjning 90 DN80 HSF2 1.4404 (316L) Fit to EN10357-A

Name: Bøjning 90 DN80 HSF2 1.4404 (316L) Fit to EN10357-A
Brand: Alfa Laval
SKU: 9615220029
Price: 511.53 DKK
Availability: InStock

BEND 90 DN80 HSF2 1.4404 - FIT TO EN10357-A TUBE

Fabrikant:Alfa Laval

Produktkode: 5012

Varenummer: 9615220029

På lager:

HS-kode: 73072310

Leveringstid:On request

Range: Bends
Product Model: Fit to DIN Bends 90
Size: DN80
Størrelse: 1.4404 (316L)
Anden størrelse: HSF2 (ID=0.8/OD=1.6)
Afslut: Weld ends
Tilslutningstype: Fit to EN10357-A
Varens vægt: Standard
Oprindelsesland: 0.79

Pris:

Log ind for at se pris

Fragt beregnes ved kassen

Antal:

L: 118.00
R (mm): 90.00
OD/ID xt: 85.00/81.00 x 2.00
OD1/ID1 x t1: 85.00/81.00 x 2.00
